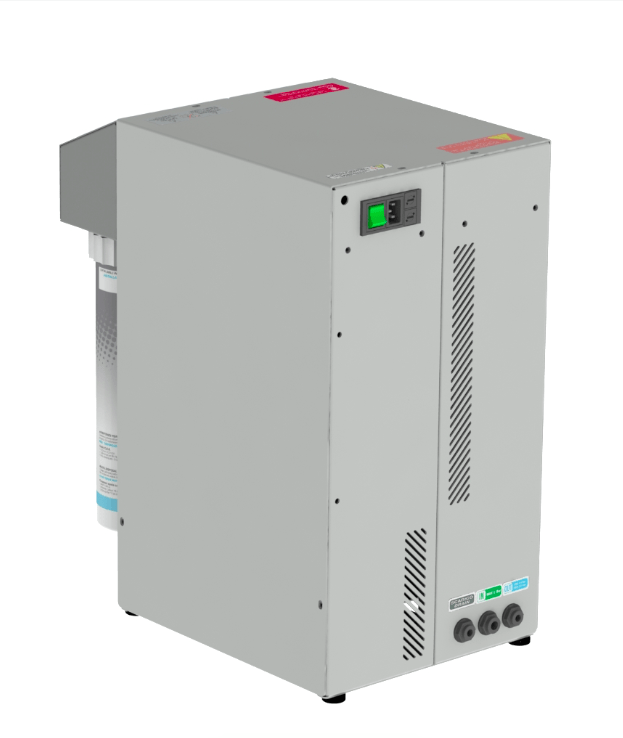

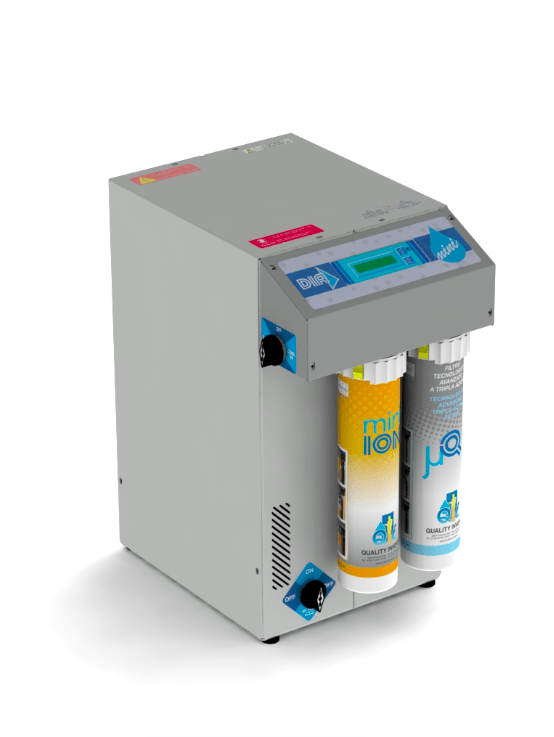

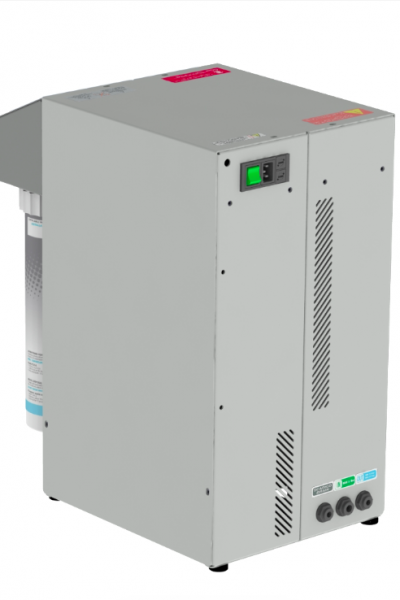

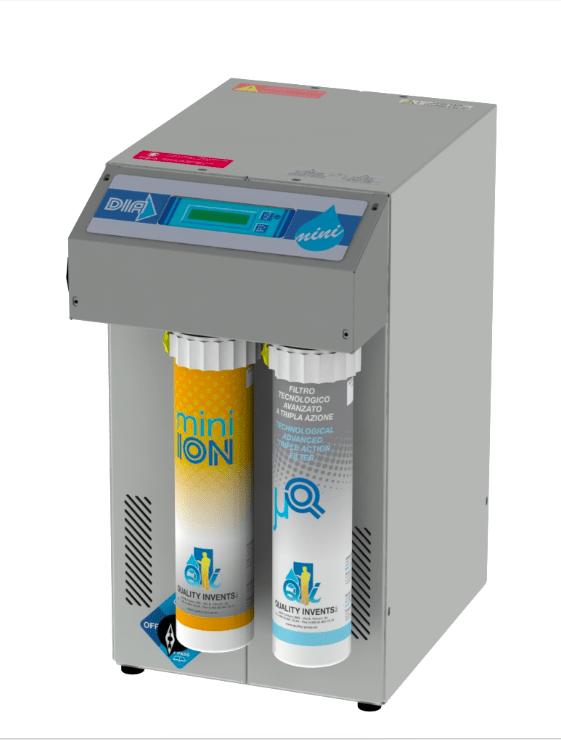

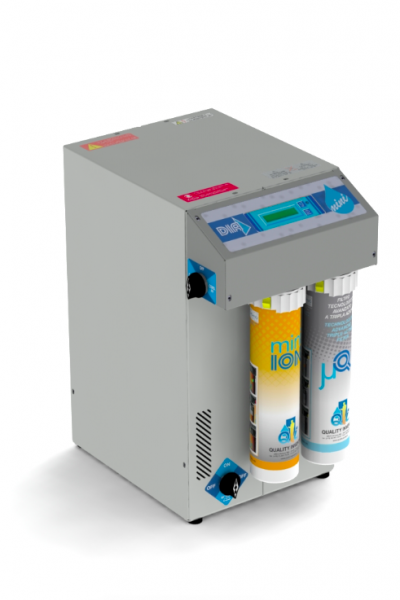

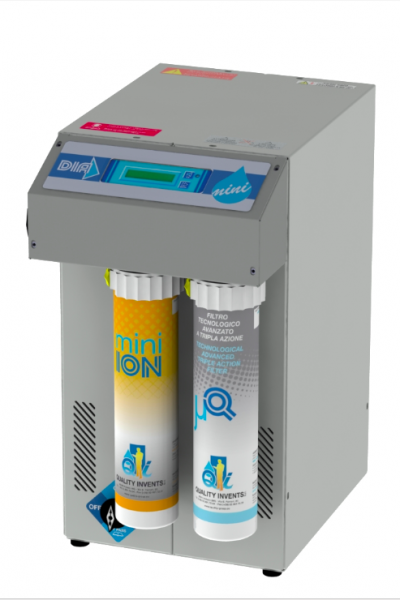

The miniDIA deionizers line has been designed to be handy, compact and economic, ready to adapt to plant situations with low water flow.
Thanks to different configurations, the miniDIA deionizers can supply 10 to 30 liters / hour of treated water according to the CLSI standard.
PLUS-T versions include a treated water storage tank with a capacity up to 50 liters.
DOWNLOAD DATASHEET
10/30 lt/h
Deionized water production up to 30 l/h.
OUTPUT WATER
CLSI Standard water, with a typical conductivity of 0.1 µS/cm
PLUS VERSION
Fully automatic versions, with less interaction with user.
AUTOMATIC BYPASS
With automatic bypass, the DIA guarantees the flow of deionized water in all conditions *.
FORM FACTOR
Optimization of components to ensure reduced dimensions and easy installation.
USER FRIENDLY
Very easy-to-use interface and disposables replacement wizard.
REVERSE OSMOSIS WATER
(@15 °C, 800ppm NaCl, pH 8,3 e SDI 5)
| wdt_ID | Colonna 1 | Colonna 2 | Valore |
|---|---|---|---|
| 1 | Salt rejection | % | 95 |
| 8 | Applied pressure | bar: | 10 max |
| 9 | Permeate flow | l/h: | 10-30 * |
| 10 | Disposable replacement | in Stand By |
OUTPUT WATER
CLSI Standard
| wdt_ID | Colonna 1 | Colonna 2 | Valore |
|---|---|---|---|
| 1 | Resistivity | MΩ.cm: | 10 |
| 2 | Bacteria | CFU/ml: | < 10 |
| 8 | TOC (Total Organic Carbon) | ppb: | < 500 (with 185nm UV Lamp) |
| 9 | Nominal flow rate | l/min: | 2-2,8 (120-170 l/h) |
| 10 | Water pressure | bar: | 0,9 - 3,0 adjustable |
WATER SUPPLY
| wdt_ID | Colonna 1 | Colonna 2 | Valore |
|---|---|---|---|
| 1 | TDS | ppm: | 800 max |
| 2 | SDI | < 12 | |
| 3 | LSI | < 0,3 | |
| 4 | Water Hardness CaCO3 | ppm: | 300 |
| 5 | Chlorine concentration | ppm: | < 0,5 |
| 6 | Pressure | bar: | 2 - 5 |
| 7 | Water flow rate * | l/h: | 200 @2bar |
ELECTRICAL DATA
| wdt_ID | Colonna 1 | Colonna 2 | Valore |
|---|---|---|---|
| 8 | Voltage supply | Volt AC: | 230 |
| 9 | Grid frequency | Hz: | 50 |
| 10 | Power consumption | KVA: | 0,4 |
| 12 | Noise at 1 mt | dB: | < 60 |
CONNECTIONS
| wdt_ID | Colonna 1 | Colonna 2 | Valore |
|---|---|---|---|
| 8 | Input | type: | ¾" F GAS |
| 9 | Output | type: | 10 mm JG |
| 10 | Drain | type: | 8 mm JG |
SIZE, OPTIONAL AND DISPOSABLES
| wdt_ID | Colonna 1 | Colonna 2 | Colonna 3 | Colonna 4 | Colonna 5 |
|---|---|---|---|---|---|
| 8 | Product | miniDIA | miniDIA PLUS-20 | miniDIA PLUS-20-T | miniDIA PLUS-30 |
| 9 | Code | Q-1010-28 | Q-1010-38 | Q-1010-34 | Q-1010-37 |
| 10 | Production per hour | 10 | 20 | 20 | 30 |
| 11 | Number of prefilters | 1 | 1 | 1 | 1 |
| 12 | Weight (kg) | 60 | 61 | 75 | 61 |
| 13 | Height (mm) | 560 | 1315 | 1315 | 1315 |
| 14 | Width (mm) | 300 | 300 | 600 | 300 |
| 15 | Depth (mm) | 450 | 480 | 480 | 480 |
| 16 | Prefilter cartridge Q-1000-25 | D | D | D | D |
| 17 | IONTANK Mixed Bed Q-1000-10 | - | D | D | D |
| 18 | miniION Cartridge Q-1000-40 | D | - | - | - |
| 23 | Pressure Kit DIA Q-1110-21 | O | O | O | O |
| 24 | UV Lamp Kit Q-1340-02 | O | O | O | O |
*O = Optional *D = Disposable
